Film Lamination Machine
We are offering a wide array of Film Lamination Machines to our clients. These machines are available in varieties of plain and window-cum-plain film lamination machines. Our clients can purchase these highly functional machines from us with full customization as well.

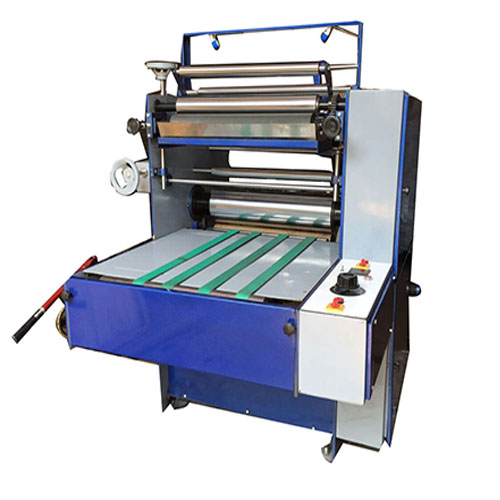

Plain Film Lamination Machine
We are proficient in manufacturing an extensive range of Laminating Machines for various industrial purposes. These are effective in laminating even the most dry print and are user friendly. The laminating machines we provide have sturdy construction and are dimensionally accurate.
Technical Specifications:
| Size | 24" (610 mm) | 30" (760 mm) | 36" (915 mm) | 42" (1065 mm) |
| Max. Laminating Width | 610 mm x any length | 760 mm x any length | 915 mm x any length | 1065 mm x any length |
| Speed | 0-600 mt. /Hr. | 0-550 mt./Hr. | 0-500 mt./Hr. | 0-500 mt./Hr. |
| Max. Film Roll Width | 610 mm | 760 mm | 915 mm | 1065 mm |
| Max. Film Roll Diameter | 305 mm | 305 mm | 305 mm | 305 mm |
| Power Required 220V D.C. Motor | 0.8 KW | 1.2 KW | 1.5 KW | 1.5 KW |
| Floor Space LxWxH | 1600 x 1270 x 1525 mm | 1780 x 1425 x 1525 mm | 1930 x 1525 x 1525 mm | 2085 x 1680 x 1525 mm |
| Weight Apx. | 1000 Kg. | 1400 Kg. | 1600 Kg. | 1800 Kg. |
Standard Equipments: Two knives, Air Floating Table, Photo Electric Safety Guide, Set of tools.

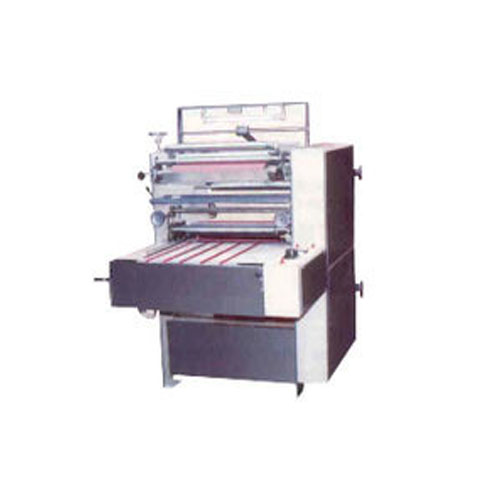

Window Cum Plain Film Lamination Machine
We are proficient in manufacturing an extensive range of Laminating Machines for various industrial purposes. These are effective in laminating even the most dry print and are user friendly. The laminating machines we provide have sturdy construction and are dimensionally accurate.
Technical Specifications:
| Size | 24" (610mm) | 30" (760 mm) | 36" (915 mm) | 42" (1065 mm) |
| Max. Laminating Width | 610 mm x any length | 760 mm x any length | 915 mm x any length | 1065 mm x any length |
| Speed | 0-600 mt. /Hr. | 0-550 mt./Hr. | 0-500 mt./Hr. | 0-500 mt./Hr. |
| Max. Film Roll Width | 610 mm | 760 mm | 915 mm | 1065 mm |
| Max. Film Roll Diameter | 305 mm | 305 mm | 305 mm | 305 mm |
| Power Required 220V D.C. Motor | 0.8 KW | 1.2 KW | 1.5 KW | 1.5 KW |
| Floor Space LxWxH | 1600 x 1270 x 1525 mm | 1780 x 1425 x 1525 mm | 1930 x 1525 x 1525 mm | 2085 x 1680 x 1525 mm |
| Weight Apx. | 1000 Kg. | 1400 Kg. | 1600 Kg. | 1800 Kg. |

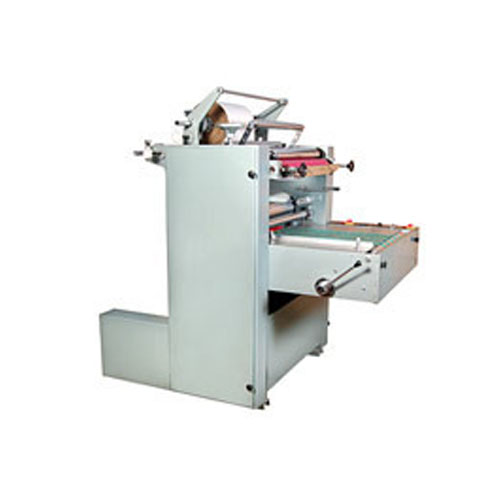

Thermal Film Lamination Machine
Thermal Lamination : Thermal Lamination is a new lamination technique.
Features:
-
Single side lamination as well as Both sided laminate
-
Temperature Control
-
Digital sheet counter
-
Equipped with cooling fans
-
Hand-held cutter quickly separates laminated sheets.
It is ideal for digital photographs, wall calendars, maps, menus, photos, recipe cards, posters for promotions, etc.
